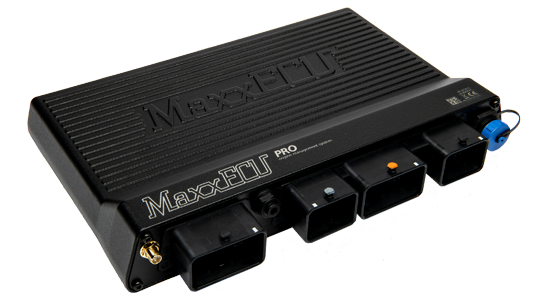

Maxxecu Pro

• For tuning masterminds working with racing professionals looking for the most advanced engine control system, this is it.
• On the track, winning or losing comes down to details. That’s why MaxxECU PRO can access just about any information – Tune to perfection.
• Includes our easy-to-use MTune software for intuitive tuning, and real-time monitoring/control with our wireless MDash Android app

What’s in the Box

• MaxxECU PRO / Unit only with no accessories.

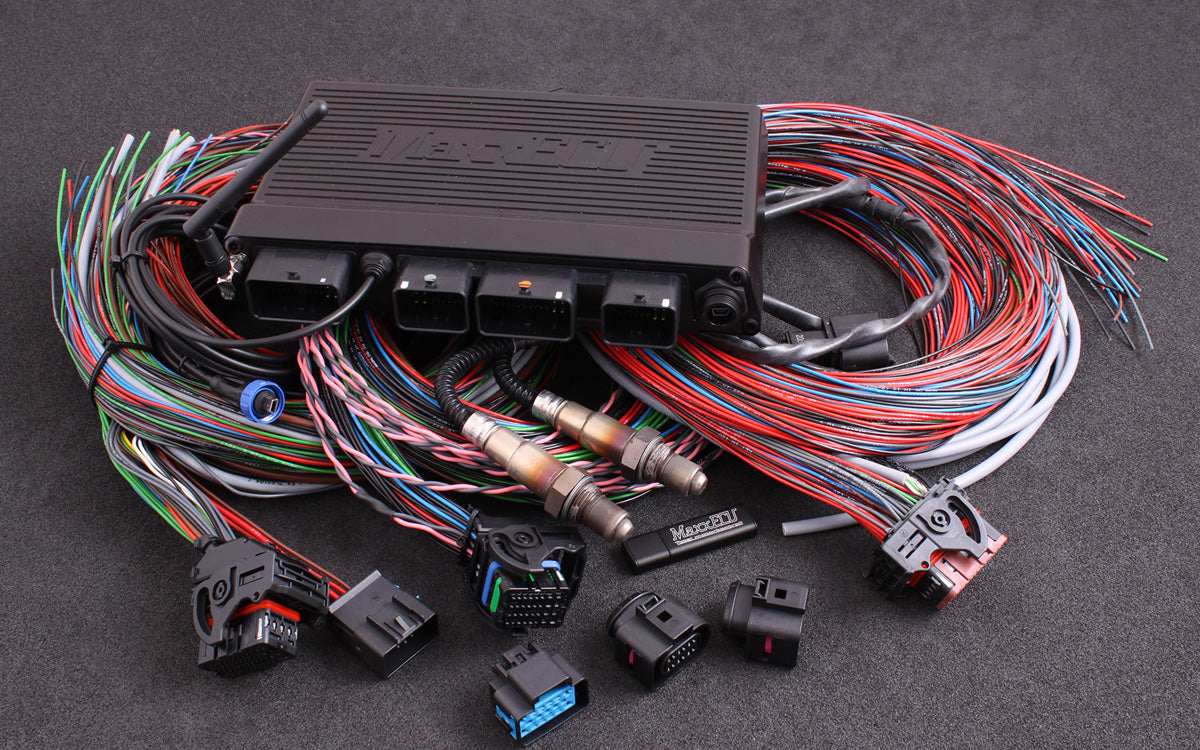

• MaxxECU PRO STANDARD  / ECU, harness, and accessories.
• MaxxECU PRO PREMIUM / ECU, harness, accessories, and LSU 4.2

MaxxECU Pro Features

Target engines for MaxxECU Pro

• All 3-12 cylinder engines (4-stroke)
• Up to 12 cylinders fully sequentially
• Up to 12 cylinders in wasted spark

Inputs

• Intake air temperature sensor (IAT)
• Coolant temperature sensor (CLT)
• Throttle position sensor (TPS)
• Dual lambda (WBO) sensor. Uses sensor directly connected to the ECU without any additional electronics. Supports Bosch LSU 4.2 and 4.9
• 2 trigger inputs. VR or digital. Automatic trigger level detection. The signals are processed by a completely separated processor for maximum performance and immunity against interference
• 6 temperature sensors. Can be used for logging or control of additional functions
• 16 0-5V inputs. Can be used for additional sensors such as measurement of fuel / oil pressure
• 10 digital inputs used for example speed sensors (4 can use VR-sensors) or switches
• Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost
• 12 EGT TYPE-K/N inputs with separate harness (up tp 1200C/2200F

Outputs

• 16 peak/hold injector outputs. 1-2 high or low impedance injectors per output. 8A per output
• 12 ignition outputs. 5V signals to drive ignition modules, CDI units / coils
• 30 extra outputs for additional features. Can be adjusted to control virtually anything like fuel pumps, idle valves. GPO 1-8 (2A), GPO 9/10 (5A), GPO 11-14(2A), GPO 15-23 (12V sourcing, 4A), GPO 23-30 (1.5A)
• Dual E-Throttle support

Technical

• CAN bus for expansion modules, OEM vehicle CAN, ODBII
• USB communication for tuning with MTune
• Bluetooth for connecting to mobile devices with MDash
• 8MB memory for internal logging, up to 1000Hz
• Supply voltage 8-22V
• ARM Cortex-M3 120MHz main processor. Three extra processors to handle the triggers, injectors, and EGT
• Resolution on ignition: 0.1 degrees
• Resolution on injectors: 0.001 ms
• Updates the fuel and ignition calculations 2000 times per second
• The fastest PC communication on the market
• 50Hz sampling rate on all EGT inputs
• 1000Hz sampling rate on all analog inputs
• Weight: 1137g
• 252x180x40mm excluding protruding connectors
• Built-in accelerometer up to 8G
• Waterproofed aluminum case with shock absorbers
